HR Bar Hanger
The HR Bar Hanger is designed to connect two IGT frames of the same size in a two-tier setup, enhancing the functionality of your existing IGT configuration.
Feature
- Compatible with 2 Sizes: Regular(3Unit) and Long(4Unit)
- Compact Design
- Includes Convenient Pouch for easy transport
Recommended Henrik Seo products that pair well with HR Bar Hanger.
Expert's Recommendations
HR Bar Hanger
Compatible with 3-unit and 4-unit IGT frames, it utilizes the Half Unit Twin Pole provided with the frame to offer versatile expansion options, making it a practical addition to your outdoor cooking or dining setup.
HR Bar Hanger
Compatible with 3-unit and 4-unit IGT frames, it utilizes the Half Unit Twin Pole provided with the frame to offer versatile expansion options, making it a practical addition to your outdoor cooking or dining setup.
Specifications
- Regular: 33 * 19.3 * 37.4"| 84 * 49 * 95 cm (L*W*H)
- With Extension Pole: 42.9 * 19.3 * 37.4" | 109 * 49 * 95 cm (L*W*H)
5 kg | 11.02 lbs
Stainless

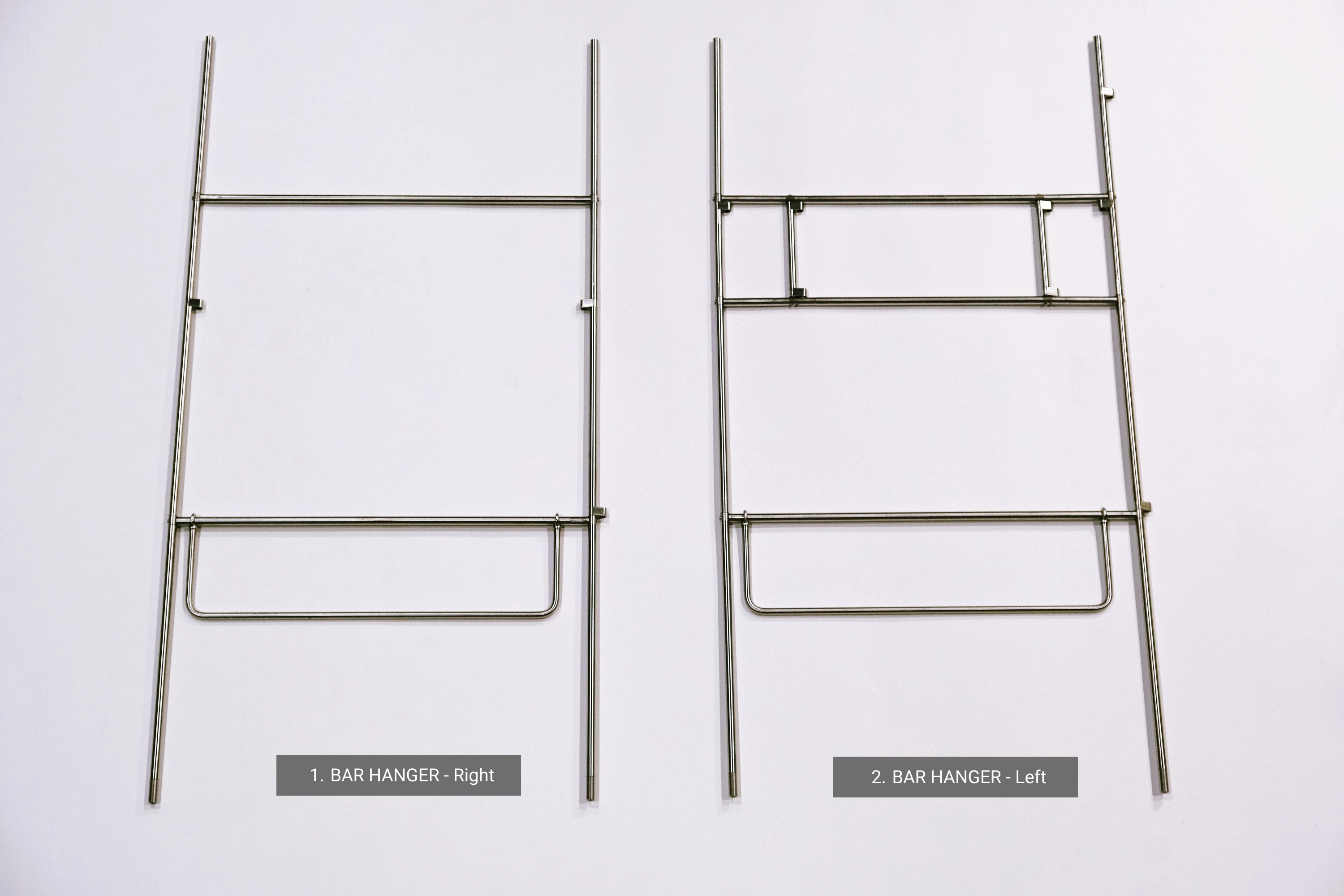

- Main Bar Hanger (Left, Right)

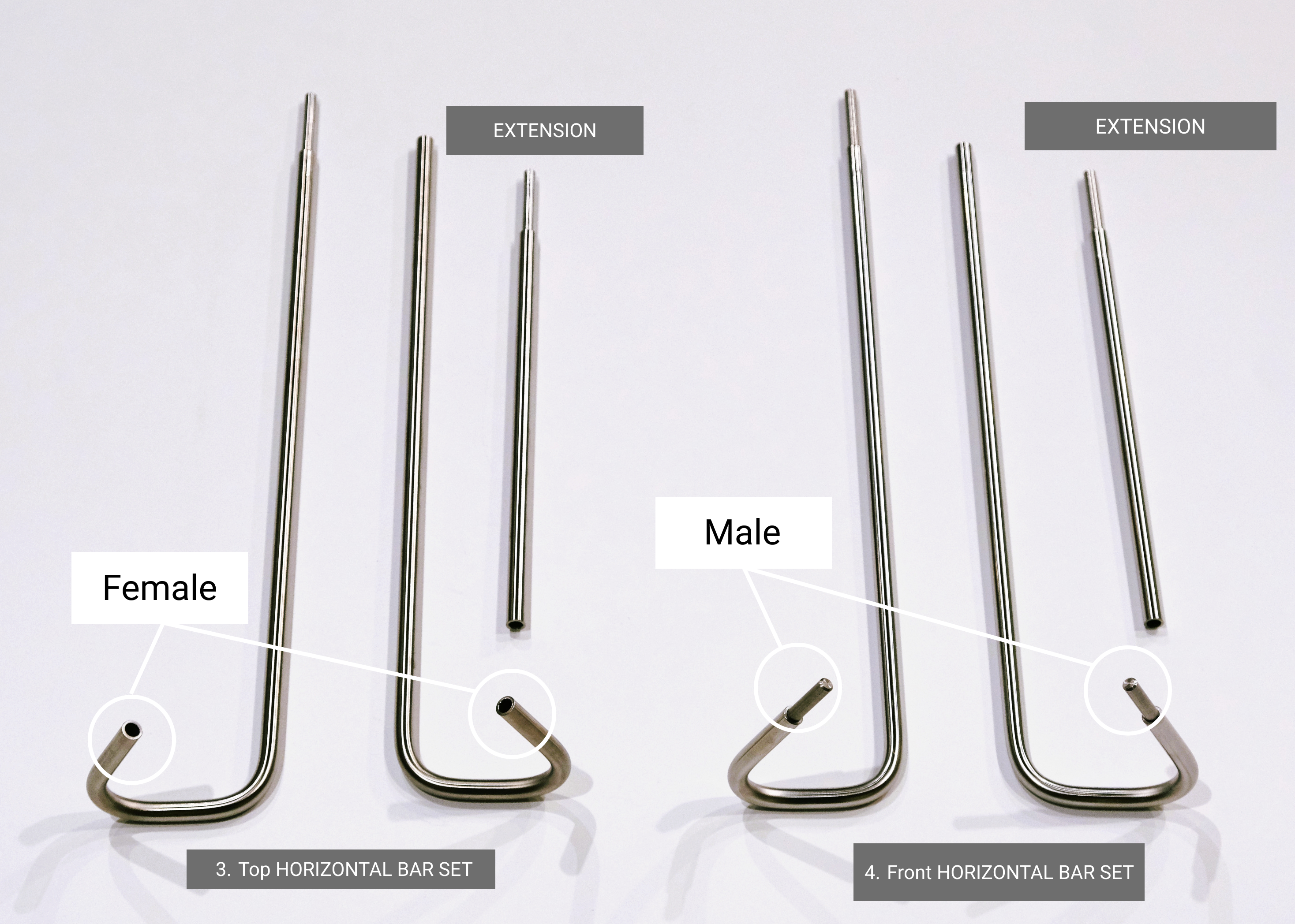

- Horizontal Bar (Top, Front)

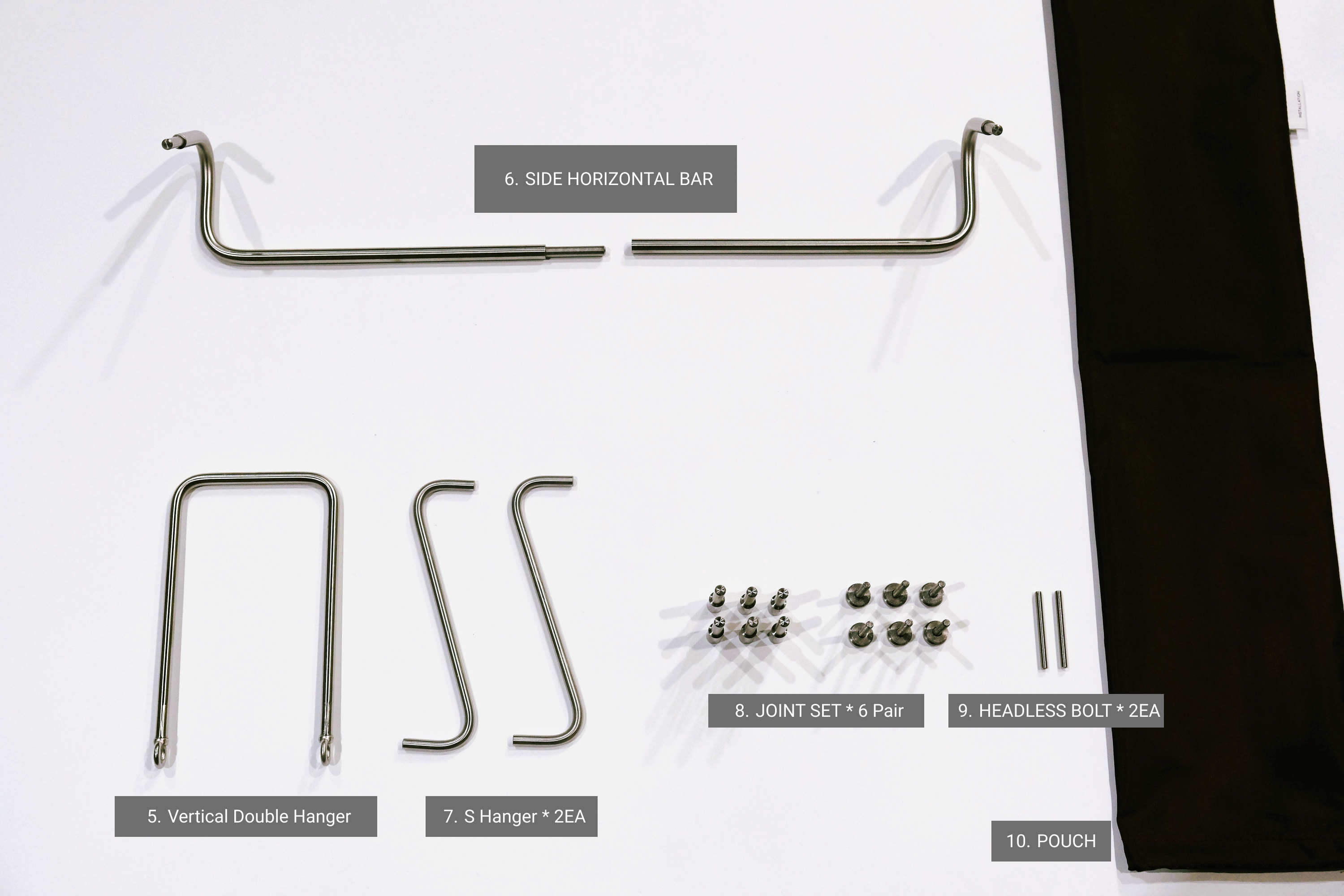

- Vertical Double Hanger
- Side Horizontal Bar
- S-Hanger * 2pc
- Joint Set * 6 Set (bolt and nut)
- Headless Bolt * 2pc
- Pouch

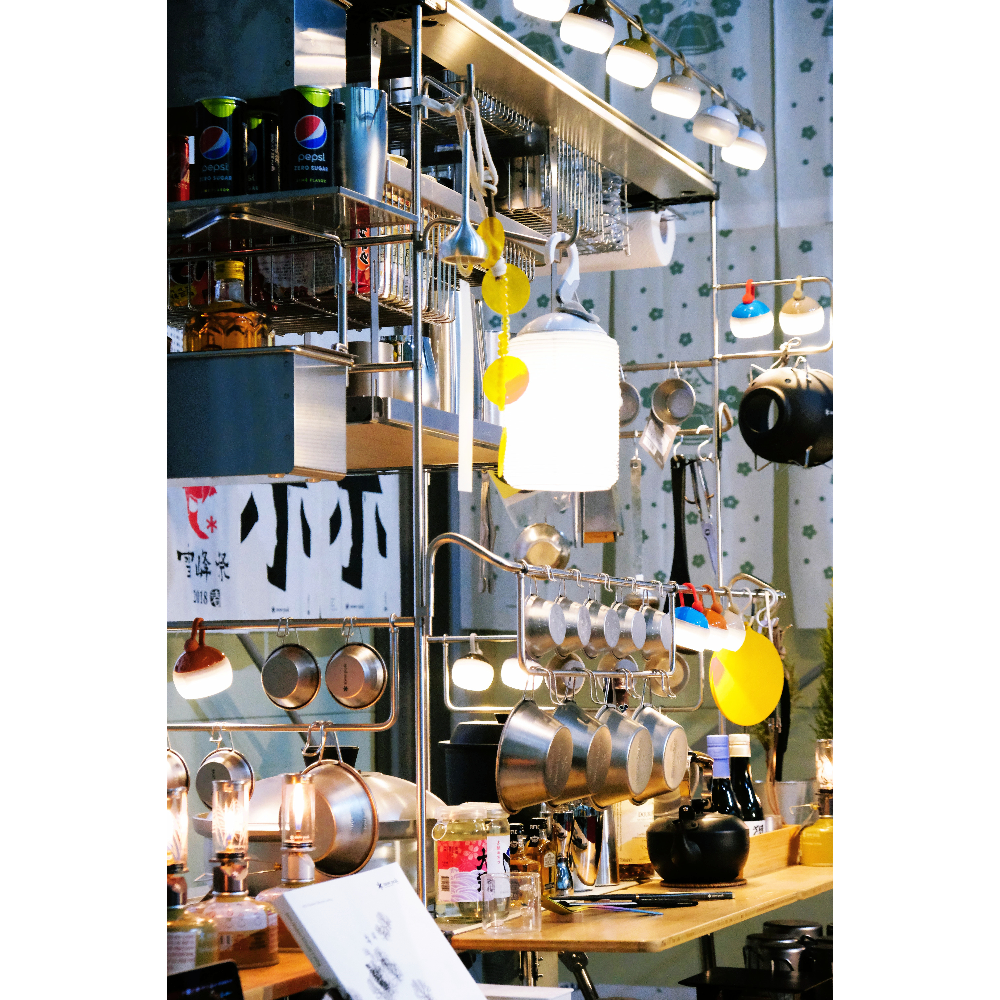

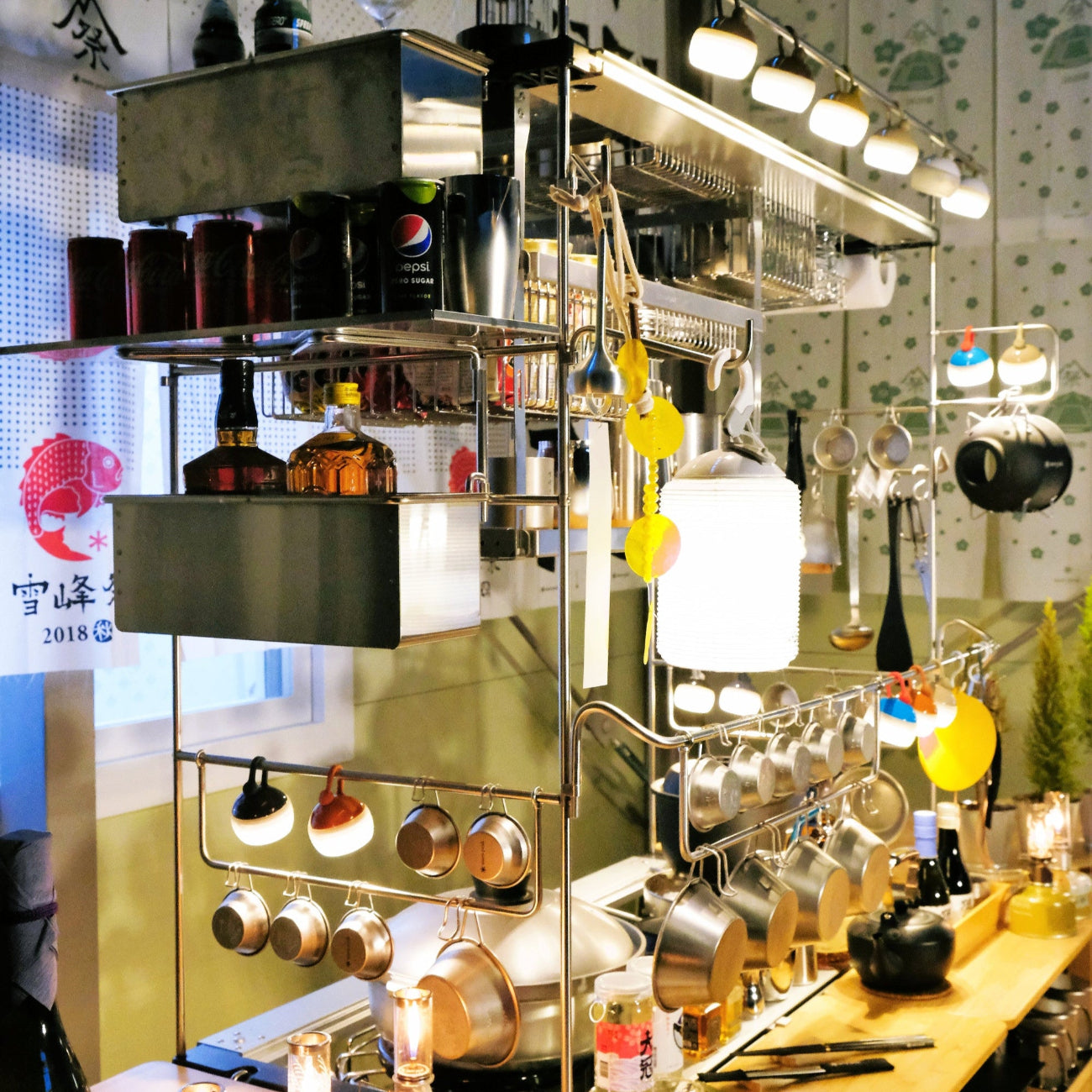

Expanded Versatility for Accessories and Storage
Crafted from high-quality, durable materials, the HR Bar Hanger is designed to provide robust support and reliability in your multi-tiered IGT setup. This enhances functionality and blends seamlessly with your outdoor kitchen aesthetics, making it a practical and stylish addition to any IGT configuration.
Two Adjustable Length Options
Easily customize the pole size using the included Extension pole. You can adjust the length to fit your purpose perfectly.
- Regular: 840mm
- With Extension Pole: 1090mm

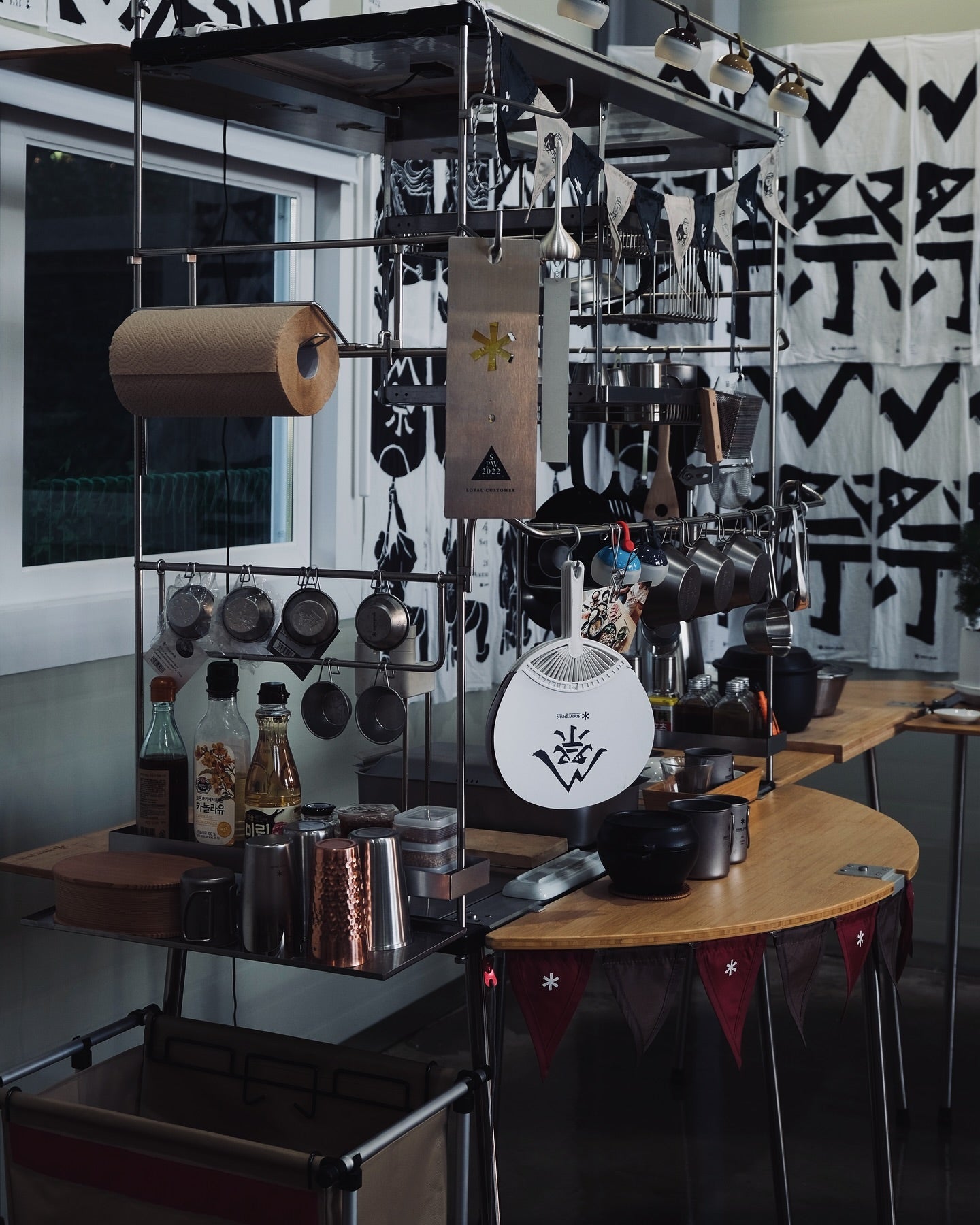

Regular(3 Unit)

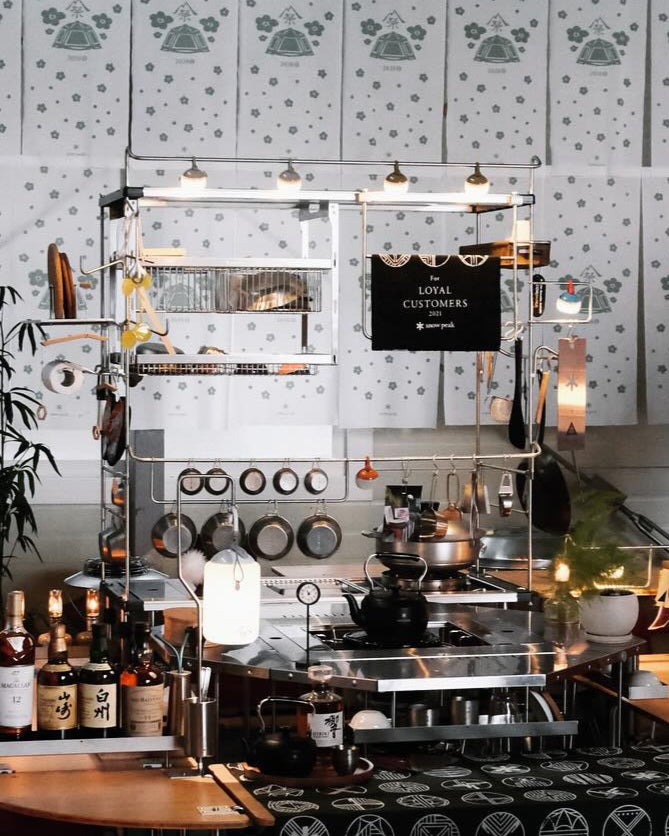

With the Extension(4 Unit)
Quick and Easy Setup in Just A Minute
Elevate your IGT configuration by expanding it with the Bar Hanger. Equipped with Twin Poles by default, it offers versatility for adding hangers, stainless steel boxes, and more to create your unique setup.
📌 Important Tips for Setting Up a Kitchen Table Hnager on an IGT Table
- Start by attaching the joints to the same-sized frame for the second tier. Ensure safe installation of the two-tier frame with the help of two people.
- Be careful not to over-tighten the hanger by twisting it clockwise when it's already attached. If it's too tight, it may be hard to remove—loosen the bolt to make adjustments.

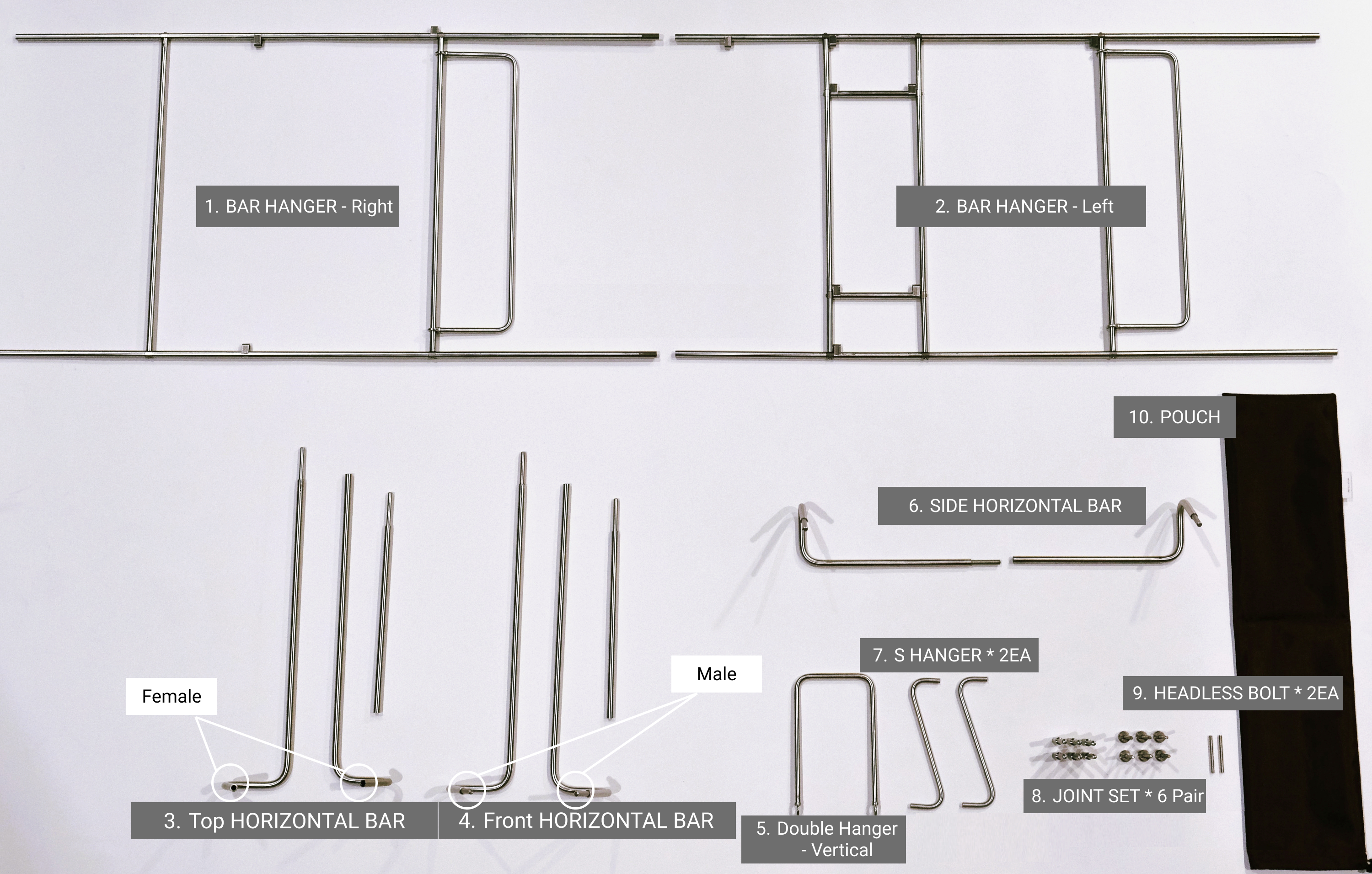

Default package includes: Main Bar Hanger (Left, Right), Horizontal Bar (Top, Front), Vertical Double Hanger, Side Horizontal Bar, S-Hanger * 2pc, Joint Set * 6 Set (bolt and nut), Headless Bolt * 2pc, Pouch

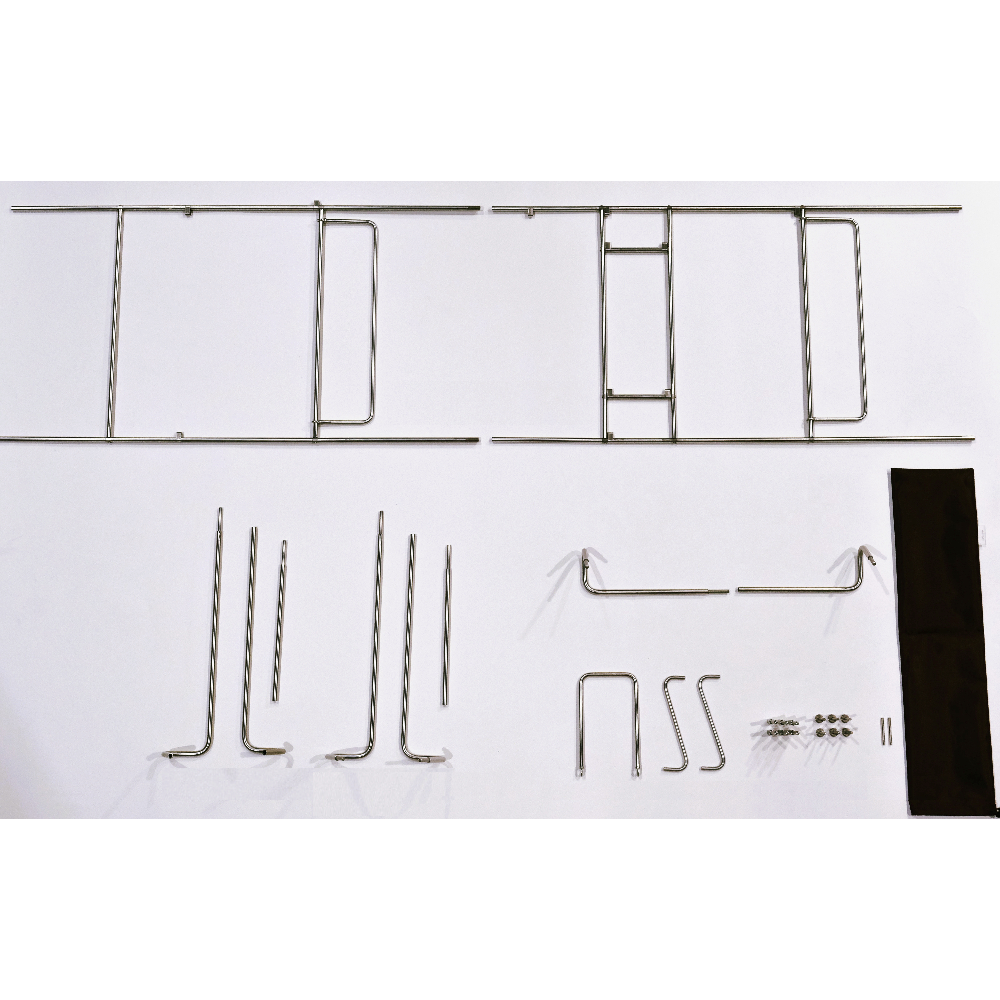

Components Detail
Step 1
Secure the Main Hanger
Secure the main hanger to the left and right sides of the IGT frame using bolts.
Step 2
Place Double Hanger
Position a Vertical Double Hanger wherever you prefer for added customization.
Step 3
Secure Bolts
To assemble the two-tiered IGT Frame, you will need 2 headless bolts, 4 Pole Joint nuts, and 2 Pole Joint bolts (all included in the default components).
📌The headless bolts should be secured to the Pole Joint with a thickness of approximately 5–10 mm.
📌On one of the wider sides of the IGT Frame, use 1 headless bolt with 2 Pole Joint nuts. On the opposite side, use 1 headless bolt with 1 Pole Joint nut for secure assembly.
Step 4
Place Top Horizontal Bar
Attach the Top Horizontal Bar (Component 3) to the Pole Joint secured at the top of the two-tiered IGT Frame. Depending on the size of your IGT Frame, use the extension as needed.
Step 5
Place Two-Tier IGT Frame
Connect the Main Bar Hangers installed on both sides to the secured Joint Pole bolts.
📌Be careful not to over-tighten the hanger by twisting it clockwise when it's already attached. If it's too tight, it may be hard to remove—loosen the bolt to make adjustments.
Stel 6
Connect S-Hanger
Attach the S-Hanger anywhere along the Twin Pole as desired. The S-Hanger is ideal for holding lights or small accessories.
Step 7
Additional Versatility
Utilize the Twin Pole to create even more diverse configurations. Compatible with IGT Stainless Steel Box Hanger
Recommended Pairing HR Accessories 🔗
Perfect Pairing Accessories for the HR Bar Hanger! These add-ons keep essentials organized, free up table space, improve accessibility, and add versatile functionality—giving you a cleaner, more efficient, and customized setup that enhances every moment outdoors.
📌 Henrik Seo products are often compatible with each other. Be sure to check which items can be used together to ensure a smooth purchasing experience without any confusion.
